PARTS INSPECTION SYSTEMS

CDS LIPE designs and builds automatic inspection machines & sorting systems. Vision inspection machines, laser inspection machines, eddy current inspection machines, LED measurement systems, ultrasonic inspection, linear vector displacement transducers, roll sorters, pin inspection systems, bar code, laser marking, color sorting and more.

EDDY CURRENT INSPECTION

CDS designed and built this machine to inspect Automotive Fuel Pressure Connector Bodies. This fully automatic system uses a vibratory bowl feeder and Eddy Current technology to sort out defects including cracked parts, undersized threads, missing threads, deformed features, long parts, short parts, bar ends, material defects, chamfer deviations, and soft parts. Good parts are fed via a cleated conveyor to an automatic tote handling unit for packout.

Automated LED Journal Diameter Inspection & Sort System

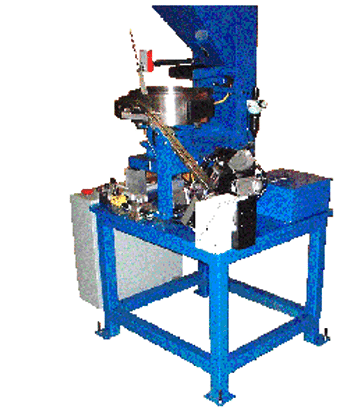

CDS designed and built this LED Inspection System to automatically inspect the journal diameters of a part produced on a screw machine. The operator loads parts into the bulk hopper. The bulk hopper supplies parts to the vibratory bowl feeder.Parts in the proper orientation are fed down a gravity track to two LED measurement units. The journals on each end of the part are measured. Good and reject parts are gated accordingly and exit the system via their respective output chutes.

VISION INSPECTION

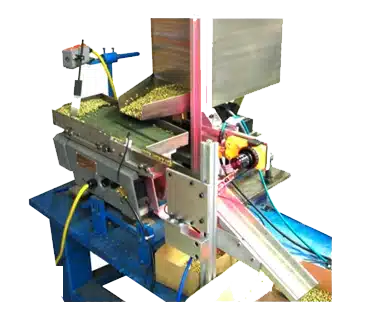

CDS designed and built this vision inspection system to provide automatic sorting services to a brass insert manufacturer. This system utilizes a linear vibratory feeder system and vision system for automated inspection of the head height. Oriented parts are fed past the vision system camera where the head height is measured. Good and reject parts are gated accordingly and exit the system via their respective output chutes.

Typically used upstream of final process or automated packaging operation to achieve 100% inspection criteria.  These systems often combine multiple CDS LIPE product lines combined with custom engineered elements to achieve final desired outcome.

Downloadable Documents

---

Part Inspection System
